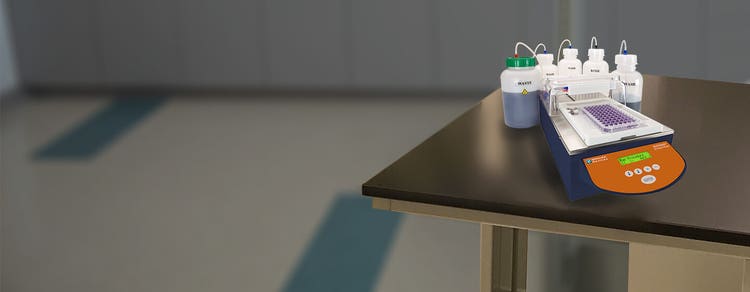

MultiWash+ Microplate Washer

Simplified microplate washing automation

When everything has to be just right, you'll really appreciate having a MultiWash+™ Microplate Washer in your lab. Compact, quiet, and efficient, the MultiWash+ washer comes with the option of 20 different wash protocols, with variations that include adjustable speed and volume, adjustable aspiration speed and time, adjustable soak times, and three modes of shaking. Comes with four wash/rinse bottles. Configurable for both 96- and 384-well plates. Read the customer story - University of California, Davis

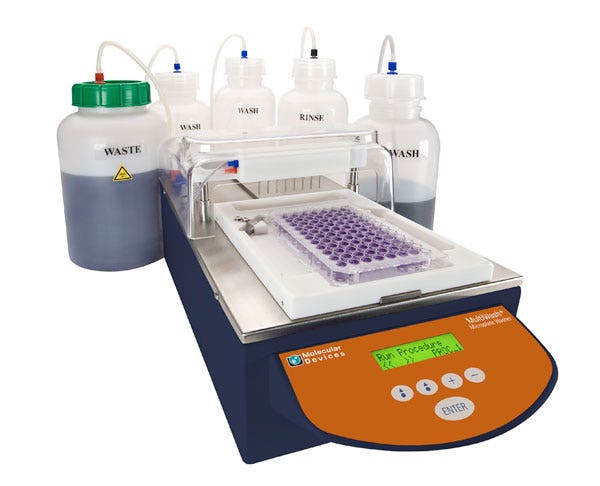

The MultiWash+ Microplate Washer is configurable for both 96- and 384-well plates and comes with four wash/rinse bottles and one waste bottle to make getting started simpler.

Benefits

  • Walk-up usability
  • 4 wash and rinse bottles included
  • Flexible system washes 96- or 384-well plates
  • Automated rinse reduces clogging
  • Cross-wise aspiration reduces residual volume within each well
  • Vacuum and pressure free
  • On-board pumps that provide a quiet wash experience
  • Quiet, efficient, compact and portable

Wash Protocols & Modes

  • On-board touch panel comes with the option of 20 different wash protocols
  • Up to 8 cycles within each protocol
  • Adjustable speed and volume
  • Adjustable aspiration speed and time
  • Adjustable soak times
  • 3 shaking modes available

The MultiWash+ Microplate Washer is geared to users that have lower throughput applications, but still want the benefits of a microplate washer. Any assay that needs washing as a primary, intermediary, or final step before quantitation is amenable to be processed on the MultiWash+ Washer.

Including:

  • ELISA (Enzyme-Linked ImmunoSorbent Assay)
  • FIA (Fluorescent Immuno Assays)
  • LIA (Luminescent Immuno Assay)
  • Cytotoxicity a ssays
  • Agglutination assays

The MultiWash+ Microplate Washer is programmed using the on-board touch panel that comes with the option of 20 different wash protocols, including up to 8 cycles within each protocol for walk-up usability and flexibility. No external computer or software is necessary.

Specifications

Dispense volumes
50 - 2000μL in 50 μL increments
Dispense precision
<5% at 300 μL across the plate
Residual volume
<1 μL per well
User interface
2 x 16 characters backlit display keyboard with 5 function keys
Shaking
3 speeds
Microplates
96-well plates flat and round bottom (384-well plates with 16-manifold) Fits plates with standard ANSI SBS footprint
Power requirement
90 - 250B, 60V auto-sensing, 50/60 Hz
Instrument dimensions (WxHxD)
21 x 44 x 21cm, 8.3" x 17.3" x 8.3"
Weight
8 kg, 17.8 lbs

Related Videos

View an ELISA workflow using the EMax Plus Microplate Reader and MultiWash+ Microplate Washer in this short video.









Related Collateral

Brochure

Applications

MultiWash™+ Microplate Washer

Product

Part Number

MultiWash+ for 96-well plates: 4 liquid lines, 8-way manifold and tubing, 4 wash/rinse bottles (2L), 1 waste bottle (2.5L) MultiWash+
Optional 16-way manifold 5032338
Optional 12-way manifold) 5032336
Washer maintenance kit: 2 X T 2.5A spare fuses, 2 cleaning needles, tubing sets for all bottles, cleaning tool for needles, tubing set for manifold, and spare tubing set for manifold 5032339
External Tubing Kit (4-way) 5032340
Rinse bottle 2L 5032342
