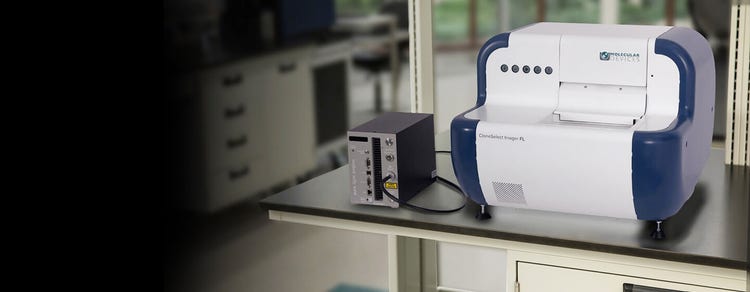

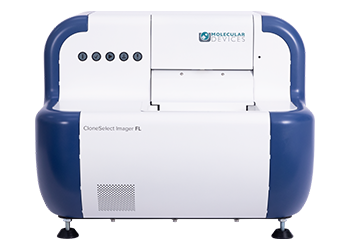

CloneSelect Imager

Objective and quantitative assessment of cell growth with label-free imaging

With high quality imaging and intelligent image analysis, CloneSelect™ Imager replaces time-consuming, subjective manual inspections with consistency and objectivity. Cell growth is viewed and tracked in every well in every plate.

  • Consistent determination of cell confluence and cell number estimation
  • Generation of growth curves
  • Label-free, white light imaging of living cells
  • Suitable for adherent and settled suspension cells

CloneSelect Imager has been successfully used on cells lines such as CHO (examples including DG44 and CHO-K1), HEK, Myeloma / Hybridoma, SupT1, Jurkat, H-4-II-E, MCF-7, PER.C6®, HT29, DLD1 and KB31.



Track confluence and cell number after fACS, limiting dilution or selection by clonePix


High Throughput Screening

  • Electronic data tracking ensures control of high throughput processes
  • Process up to 75 lidded plates in a single run
  • Recommended and supplied through Molecular Devices - optimized for CloneSelect Imager
See CloneSelect Imager in action in a high-throughput lab


Cell Line Development

Verification of Monoclonality

Focus Only On Single Colonies – Saving Time and Effort
After initial seeding, CloneSelect Imager can image every well, at any time point, using a ‘loci of growth’ functionality to highlight those wells that contain a single colony – the essential requirement for output from FACS and limiting dilutions. The user only needs to review wells with a single colony.



Confidently Verify Colony Origin
The growth (image) history of each well can be tracked back to its starting point – providing evidence of monoclonality



Data courtesy of CMC ICOS Biologics Inc., USA

Further Information

Monitor colony growth after selection of secreting cells

After screening and selection of cell lines using ClonePixSystem, CloneSelect Imager provides the ideal solution for monitoring and evaluating subsequent outgrowth and, eventually, productivity of the selected cell lines.

Track Colony Outgrowth

Outgrowth of a single well after 7 days - confluence overlay viewed for each imaging timepoint

Normalize Downstream Results to Cell Number

CloneSelect Imager estimates the number of cells per well. Data is then exported to enable normalization of results from ELISA or cell-based assays against cell number.


Correlate protein productivity and growth of cell line

Case study: Tecan-monoclonal antibody production, cell expansion

Read how the Tecan Integration Group integrated CloneSelect Imager with Freedom EVO®  to automate cell expansion and confluence measurement of MAb-producing cell lines at Monash University, Australia.

Further Information

  • Tecan Integration Group - Monoclonal Antibody Production, Cell Expansion. Part of the Monash system: Case Study Download

Case Study: Beckman Coulter - Automation of Cell Line Optimization

Read how CloneSelect Imager is utilized in a novel hardware solution for automating cell line optimization and expansion.

Further Information

  • Beckman Coulter - Cell Culture Automation in BioPharma: Cell Line Optimization and Monoclonal Antibody Production: Case Study Download

General Cell Culture

Colony Forming Assay

Save time by analyzing selected wells
(highlighted in green). Red wells are excluded.

Objective, Time-Saving Analysis

  • Every well can be imaged at any time point
  • Colony number and area quantified objectively
  • Focus on wells of interest, e.g. where growth is inhibited by test compounds

Review Results and Export Data

  • Dual gating for colony area and compactness
  • View each well at different time points
  • Export colony data
View number of colonies per well
Colonies are identified in well images

Assessment of Cell Viability (MTT Assay)

CloneSelect Imager offers several benefits over traditional MTT assays for assessing cell viability in response to a cytotoxic challenge.

  • Replace time-consuming conventional techniques
  • Monitor cell death over time
  • Ensure a permanent record of data
  • Avoid costly reagents - no staining required
“THIS NEW IMAGE-BASED TECHNIQUE HAS THE POTENTIAL TO REPLACE THE CUMBERSOME MTT ASSAY WHEN FAST, UNBIASED AND HIGH-THROUGHPUT CYTOTOXICITY ASSAYS ARE REQUESTED.”
ACCURATE NON-INVASIVE IMAGE-BASED CYTOTOXICITY ASSAYS FOR CULTURED CELLS MARQUES-GALLEGO ET AL., BMC BIOTECHNOLOGY 2010, 10:43
Images of HeLa cells - wells exposed to
different level of cytotoxin
Dose response curve: decreasing cell
confluence with increasing exposure
to cytotoxin
High resolution images show growth of cells exposed to low, medium and high cytotoxin levels

Cell Migration Assay

CloneSelect Imager offers rapid, objective quantification of cell migration assays.

  • Determine migration rates, maximum migration rate and total migration area
  • Time-saving - scan a 96 well plate in <2 minutes
  • Convenient, label-free quantification
Export data to determine dose
response to cell mobility effectors

Review Results and Export Data

  • Obtain graphical display of migration area vs. time
  • Easy to read, numerical and graphical output





Wound healing time course

Case Study: using cloneSelect Imager for media and cell culture Optimization

Data courtesy of Ben Hughes Senior Bioprocess Engineer, NCRIS Biologics Facility, Australian Institute for Bioengineering and Nanotechnology (AIBN), University of Queensland
Acknowledgements to Warren Pilbrough and Dr. Trent Munro

Objectives

  • Monitor serially-diluted cultures in a 96-well format to rapidly screen culture variables
    • Tissue culture ware (treated vs. non-treated, square vs. round bottom wells)
    • Media (volume, commercial vs. in-house formulations, supplementation)
    • Environment (sealed plates, humidification, effect of disturbances)

Workflow

  • Load high-throughput 96-well plates
    • Add cells in exponential growth (~0.1 x106 cells/mL) to row 1
    • Serially dilute cells across plate to row 12 -  Eight replicates per dilution
  • Image plates on CloneSelect Imager
    • Initial “Day 0” time point
    • Periodically monitored over 1-2 weeks
  • CloneSelect Imager data review
    • “% confluence” data utilized to identify optimal conditions

Identifying low-cell density growth conditions

  • Significant improvements achieved in 2-week period with minimal effort by single FTE
Robust and extended growth range achieved over base-case (day-7 data)

Additional information gained on cellular morphology and understanding of growth characteristics

  • Multiple nucleation points vs. “edge only” growth
Wells showing multiple
nucleation growth points
Wells showing edge
growth characteristics



  • Identified sub-optimal environmental conditions or “edge-effects”
Plate demonstrating edge effects
Plate demonstrating environmental effects

Summary from AIBN:

  • Excellent workflow obtainable using CloneSelect Imager
    • Maximize success rate for serum-free colony outgrowth in chemically-defined media by prior optimization of growth conditions
    • Efficient tracking of cell confluence ensures high viability is maintained, leading to rapid expansion for evaluating clones in shake flasks (2-3 weeks from picking)
  • Use of the CloneSelect Imager is particularly useful for optimizing clonal outgrowth strategies when platform approaches are not suitable i.e., investigating new cell lines or variants
