SpectraMax i3x Multi-Mode Microplate Reader

Western blot, cell counting, and injectors in one configurable microplate reader

View Media Gallery

Download eBook

https://share.vidyard.com/watch/JWr597wiRf19F3cCUq8T4A

Unlimited breadth of user-installable application modules expands research capabilities

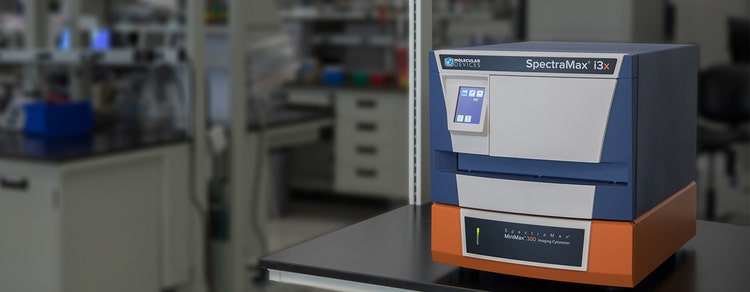

The SpectraMax® i3x Multi-Mode Microplate Reader can perform a wide range of essential cell-based and biochemical assays using the included absorbance, fluorescence, and luminescence detection modes. With the SpectraMax® MiniMax™ 300 Imaging Cytometer, industry-leading SoftMax® Pro Software, and user-configurable detection modules, this unique reader enables users to add optional detection modules at any time to expand the reader’s capabilities and explore cellular pathways and protein expression on one microplate reader. This includes AlphaScreen/AlphaLisa, time-resolved fluorescence, TR-FRET/HTRF, fluorescence polarization, dual injectors, and western blot detection. Transmitted light and fluorescence channels offer the option to image stain-free or use cellular dyes to get a better view of cytotoxicity, cell proliferation, and phenotypic changes.

Capture flash assays with ease

Capture flash assays with ease

The SpectraMax i3x Injector Cartridge with SmartInject® Technology expands your research capabilities to include flash-based luminescence applications including dual luciferase.

Reduce background noise

Achieve unparalleled sensitivity

The super-cooled PMT reduces background noise, providing greater sensitivity and an expanded dynamic range.

Increase fluorescence performance

Increase fluorescence performance

An innovative combination of xenon flash lamp and LEDs provides unmatched signal strength and superior sensitivity with Spectral Fusion™ Illumination.

SpectraMax i3x Multi-Mode Detection Platform

Features

Expandable Icon

User-configurable applications

User-installable detection modules expand the reader’s detection capabilities to include AlphaScreen, time-resolved fluorescence, TR-FRET (including HTRF), fast kinetics with injectors, western blot detection, and more.

Picks Icon

No-stain cell analysis

The StainFree™ Cell Detection Algorithm for brightfield cell segmentation enables cell counting and confluency measurement without destructive stains, simplifying the cell analysis workflow.

Flexibility Icon

Multi-channel functionality

Two fluorescence detection channels on the MiniMax 300 cytometer enable the analysis of cell viability or cell toxicity assays, including viability assays and transfection efficiency.

Analysis Icon

Cellular pathway analysis

Cell confluence and cell viability imaging, western blot analysis, and quantitation of nucleic acids and protein, can be captured on one reader.

Time Icon

Spectral Optimization Wizard

This built-in technology enables users to optimize their assay in a single-step by quickly identifying the best excitation and emission wavelengths.

Target icon

Auto Intensity Adjustment

Our patented technology acquires data over a wide dynamic range without the need to re-read the plate due to saturation effects. PMT gain adjustment is bypassed with the use of high-power LEDs as part of the Spectral Fusion Illumination.

Add Cellular Imaging to your Plate Reader Workflow

Observe the viability of your cells with the field-upgradeable cellular imaging option for the SpectraMax i3x Multi-mode Detection Platform.

The field-upgradeable SpectraMax® MiniMax™ 300 Imaging Cytometer enables quick imaging and analysis of cells and gives you a front-row view of phenotypic changes that accompany cytotoxicity, cell proliferation, and protein expression. Now with StainFree™ Cell counting Technology, additional brightfield analysis features, and fluorescent green and red detection channels.

Learn more

SpectraMax i3x

Latest Resources

Customer Breakthrough

ETAP Lab use the SpectraMax i3x

SUCCESS STORY

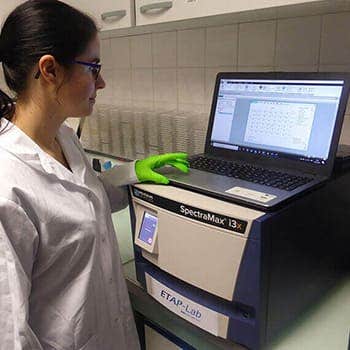

ETAP Lab use the SpectraMax i3x to advance neurodegenerative disease research

Continue Reading

How can we help advance your next big discovery?

Our highly-qualified teams are on the frontlines with our customers, conducting remote or on-site product demonstrations, webinars, and more to help you solve your tough research challenges. How can we help you today?

I’d like to…

Speak to a specialist

Request a demo

Applications of SpectraMax i3x Multi-Mode Microplate Reader

Specifications & Options of SpectraMax i3x Multi-Mode Microplate Reader

*Using lowest settings and speed read when available.

Download Brochure

download pdf

Resources of SpectraMax i3x Multi-Mode Microplate Reader

SpectraMax® i3x Multi-Mode Microplate Reader

SpectraMax® i3x Multi-Mode Microplate Reader System

System Options
Product
Part Number
SpectraMax i3x Multi-Mode Microplate Reader with SoftMax Pro Software
i3x
SpectraMax MiniMax 300 Imaging Cytometer
5024062
SoftMax Pro 7.x GxP Software
by license bundle
SpectraTest (ABS2) Absorbance Validation Plate
0200-6191
SpectraTest (LM1) Luminescence Validation Plate
0200-6186
SpectraTest (FL1) Fluorescence Validation Plate
0200-5060
SpectraDrop Micro-Volume Starter Kit
0200-6262
SpectraDrop Micro-Volume HTS Kit
0200-6267
SpectraMax Detection Cartridge Options
Product Name
Part Number
AlphaScreen Detection Cartridge (384 STD)
0200-7017POS
AlphaScreen Detection Cartridge (384 HTS)
0200-7018POS
AlphaScreen Detection Cartridge (1536 HTS)
0200-7019POS
HTRF Detection Cartridge
0200-7011POS
TRF Detection Cartridges
0200-7008POS

Fluorescence Polarization Detection Cartridge

(Fluorescein)

0200-7009POS
Fluorescence Polarization Detection Cartridge (Rhodamine)
0200-7010POS

Luminescence Detection Cartridge

(Glow for 96-well plates)

0200-7014POS

Luminescence Detection Cartridge

(Glow 96- and 384-well plates)

0200-7015POS

Luminescence Detection Cartridge

(Glow 96-, 384-, and 1536-well plates)

0200-7012POS

Dual Glow Luminescence Detection Cartridge

(BRET2)

0200-7016POS

Fluorescence Intensity Detection Cartridge

(Courmarin-Fluorescein)

0200-7002POS
ScanLater Western Blot Detection Cartridge
0200-7027
SpectraMax Injector Cartridge with SmartInject™ Technology
0200-0729
